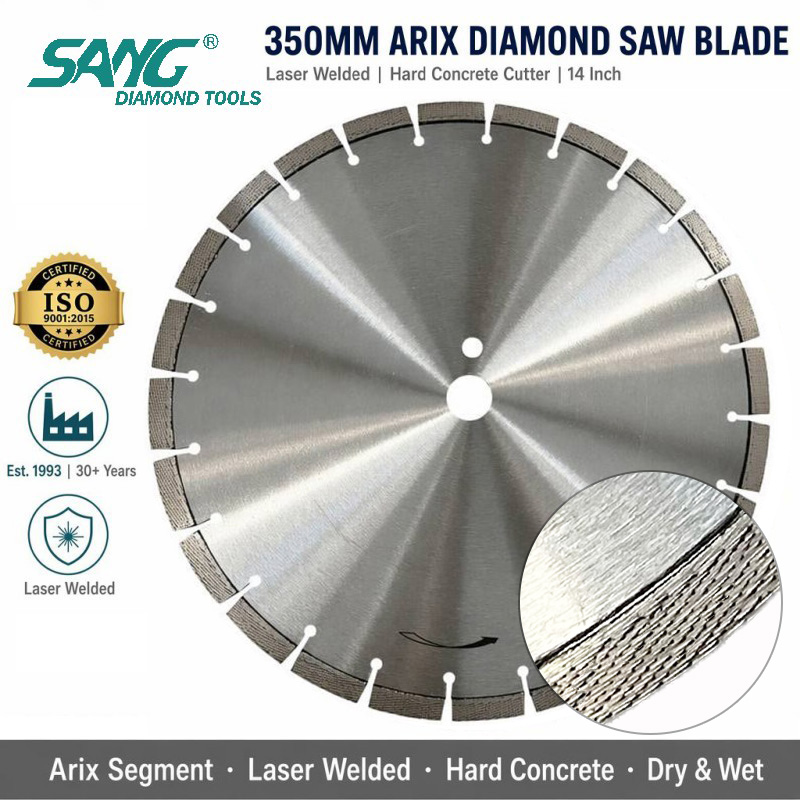

Why Is a 350mm Laser Welded Array-Pattern ARIX Diamond Saw Blade the Best Choice for Cutting Hard Reinforced Concrete?
2026-07-31
Quick Answer:The 350mm (14-inch) laser welded ARIX saw blade outperforms standard blades in hard reinforced concrete through three integrated technologies —laser welding creates a metallurgical bond above 1,300°C, eliminating segment detachment risk;ARIX diamond placement keeps every diamond cutting at its optimal angle, preventing glazing when hitting rebar; andarray-pattern segment layout builds active cooling channels into the blade rotation, preventing burn-out during continuous dry or wet cutting. Compared to standard sintered blades, the SANG 350mm cuts 35–50% faster and lasts 2–3× longer, specifically engineered for C50+ concrete with dense rebar. Below, we break down the technology, present a direct comparison table, share real project evidence, and provide a procurement checklist.
1. Why Hard Reinforced Concrete Is the Ultimate Test for a Diamond Blade Hard reinforced concrete (C50 grade and above) presents challenges that go far beyond ordinary concrete cutting:
Hard aggregate: C50+ concrete typically uses basalt or granite aggregate (Mohs hardness 7–8), causing severe abrasive wear on the diamond matrix.
Dense rebar:Structural elements can contain 80–150 kg of rebar per cubic meter. The blade repeatedly impacts steel during every cut.
Deep cutting requirement:A 350mm blade achieves 100–125mm depth of cut, meaning the cutting arc simultaneously engages both concrete matrix and rebar for extended contact length.
Standard sintered blades fail in three predictable ways under these conditions:
Glazing on rebar — diamonds remain embedded in the matrix, unable to expose fresh cutting edges. Speed collapses.
Burn-out — insufficient heat dissipation during dry cutting or low water flow causes the bond to soften and deform. Blade is destroyed.
Blade drift — lateral deflection at rebar intersections produces inaccurate cuts, wasted material, and safety hazards.
Why 350mm is the optimal diameter: This size hits the engineering sweet spot between cutting depth, equipment compatibility, and cost-efficiency. The 125mm cutting depth handles the vast majority of reinforced concrete wall and slab thicknesses. It fits 95% of walk-behind saws and wall saw systems on the market (Husqvarna, Tyrolit, Hilti, Makita, etc.), without the power and rigidity demands of 600mm+ large-diameter blades.
2.1 Laser Welding: Metallurgical Bond Above 1,300°C The fundamental difference between laser welding and silver brazing:
Criterion
Laser Welded
HF Welded
Welding temperature
1,300–1,500°C
600–900°C
Bond mechanism
Base material fusion, metallurgical bond layer
Filler alloy, physical adhesion
Tensile strength
≥600 N/mm²
200–400 N/mm²
Heat resistance
Weld withstands 800°C+
Brazing alloy may soften under continuous dry cutting
Segment loss risk
Very low
Moderate to high
When a saw blade hits rebar at speed, the instantaneous impact and thermal spike test the weld to its limit. SANG 350mm uses full-penetration laser welding with a minimum weld depth of 2.5mm per segment — guaranteeing zero segment loss under the harshest impact conditions.
2.2 ARIX Diamond Placement: Every Diamond Cutting The core value of ARIX (Automatic Rotation and Indexing System) lies in diamond utilization rate:
Traditional random placement: ~30–40% of diamonds face unfavorable cutting angles and never contribute effectively.
ARIX placement: >85% of diamonds are positioned at optimal cutting angles. As the bond wears, fresh diamonds expose in sequence — creating a continuous self-sharpening effect.
What does this mean in practice? When the blade hits rebar, ARIX ensures sufficient "active diamonds" remain engaged on the cutting face — no glazing, no stalling, no forcing.
2.3 Array-Pattern Segment Layout: Cooling as Competitive Advantage
SANG 350mm uses an array-pattern segment layout rather than conventional equidistant spacing. The engineering logic: Segments create asymmetric gaps that generate pulsed airflow during rotation, actively evacuating heat and debris. Adjacent segment cutting paths are slightly offset, ensuring rebar is cut in a relay sequence — no single segment absorbs the full impact. Wide debris channels effectively clear concrete powder. This is critical during dry cutting — powder buildup is the #1 cause of blade burn-out. In one sentence: Laser welding prevents segment loss. ARIX prevents speed decay. Array pattern prevents burn-out. All three are non-negotiable in heavy-duty reinforced concrete cutting.

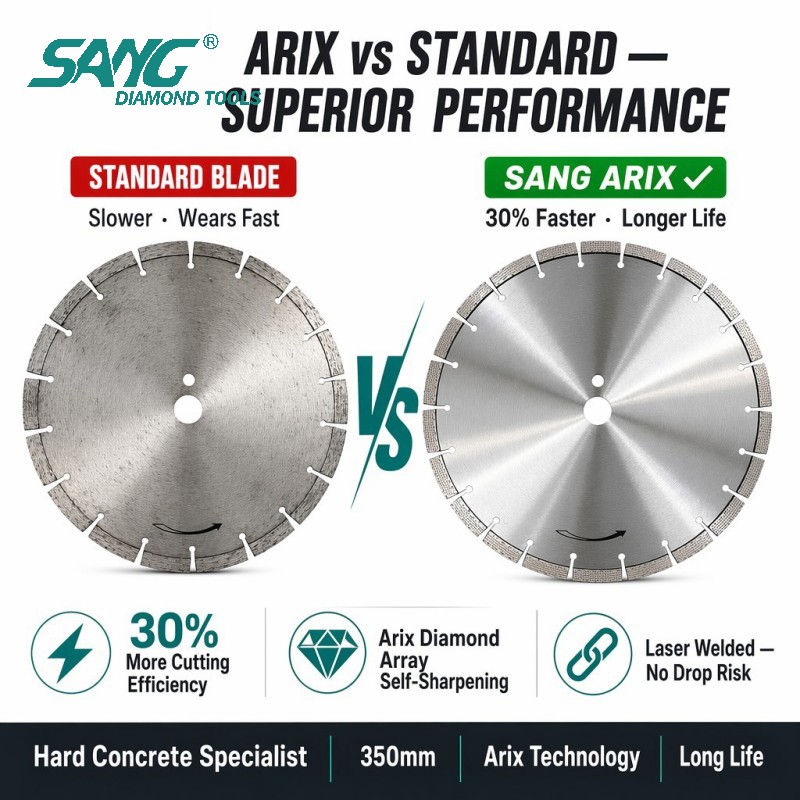

3. Four Concrete Saw Blade Technologies:Full Comparison
Criterion
SANG Laser ARIX Array
Laser Welded Standard
Silver Brazed (HF)
Hot-Press Sintered
Segment loss risk
Very low
Low
Moderate
Low (no weld seam)
Rebar performance
Excellent (ARIX continuous cutting)
Good (may glaze)
Fair–Poor
Poor (bond may fracture)
Dry cutting capability
Excellent (array cooling)
Moderate
Moderate (de-brazing risk)
Poor (overheats)
Cutting speed
35–50% faster
Baseline
10–20% slower
20–30% slower
Service life
2–3×
Baseline
0.5–1×
0.3–0.7×
Cost per linear meter
Lowest
Medium
High
Highest
Best application
C50+ hard concrete, dense rebar, dry/wet alternating
C30–C50 general concrete
Low-strength concrete, brick
Soft stone, non-reinforced
Price positioning
Medium-high
Medium
Low
Medium
Procurement takeaway: If you've ever had a blade fail mid-cut when hitting rebar, upgrading to a laser welded ARIX array blade costs 30–50% more per unit but typically reduces cost per linear meter by 40–60%.
4. Real Project Cases
Case 1: Interstate Highway Bridge Deck Replacement — Texas, USA Background: I-35 bridge deck replacement requiring 150m × 800mm rectangular cut-out sections in C55 reinforced concrete. Rebar density ~120 kg/m³, double-layer Φ25mm rebar.
Initial approach: 400mm silver brazed blades from a competing brand. Averaged 8–10 linear meters before de-brazing or burn-out.
After switching to SANG ZENESIS 350mm: Each blade completed 35–45 linear meters (wet cutting). Zero segment loss, zero blade drift.
Result: Cutting speed significantly improved. Blade change frequency reduced by 75%. Project completed 2 days ahead of schedule. Contractor added SANG ZENESIS to their specified consumables list.
Case 2: High-Rise Structural Modification — Tel Aviv, Israel Background: A 1970s reinforced concrete residential building undergoing structural renovation. Required cutting multiple door openings through 30cm walls. Concrete grade C45–C50, double-layer Φ16mm rebar mesh. Tight workspace, wall saw only.
Contractor's pain point: Sintered blades previously used glazed immediately on rebar contact. Required blade change or re-dressing every 2–3 meters.
SANG ZENESIS 350mm performance: ARIX diamond placement maintained continuous cutting through rebar mesh. "Doesn't jump, doesn't jam, doesn't drift." Each blade completed approximately 18–22 linear meters of cutting (wet).
Site supervisor feedback: "The blade doesn't fight the rebar — it just goes through."
Case 3: Underground Parking Drainage Retrofit — Sydney, Australia Background: Commercial plaza underground parking required new drainage channels: 80mm wide × 120mm deep grooves in C60 concrete floor. Water supply unavailable in some sections — dry cutting required.
Challenge: C60 concrete with hard granite aggregate. Standard blades frequently burned out during dry cutting.
SANG ZENESIS 350mm dry cutting performance: Array-pattern segment layout created effective air-cooling channels. Blade maintained safe operating temperature through 15–18 meters of continuous dry cutting. No burn-out signs.
Procurement manager feedback: One blade covers both dry and wet conditions — reduced inventory SKUs and management complexity.
5. Frequently Asked Questions (FAQ) Q1: What is the maximum cutting depth of the 350mm ZENESIS blade? Approximately 125mm. For deeper cuts, SANG offers 400mm–800mm laser welded wall saw and floor saw blades. However, for jobsite flexibility, 350mm fits the widest range of equipment at the lowest operating cost.
Q2: How much more does an ARIX blade cost? Is it worth it? ARIX blades typically cost 20–30% more than standard laser welded blades from the same manufacturer. But ARIX increases diamond utilization from ~40% to >85%, nearly doubling service life — paying 20% more for roughly double the lifespan reduces your cost per linear meter.
Q3: Will the ZENESIS blade burn out during dry cutting? Not under normal operation. The array-pattern design creates active air-cooling channels, and laser weld seams withstand temperatures above 800°C. Standard safety practice: let the blade spin freely for 10–15 seconds after every 2–3 minutes of continuous cutting.
Q4: Which saw brands is this blade compatible with? 350mm (14") diameter, standard 25.4mm (1") arbor. Compatible with Husqvarna, Tyrolit, Hilti, Makita, Stihl, and most major walk-behind saws and wall saw systems. Custom arbor sizes (20mm, 22.23mm, 30mm) available upon request.
Q5: What are your MOQ and lead times? Standard specification (350mm × 25.4mm): 10–20 units for trial, 50–100 units for mixed-spec small batch. Custom specs (special arbor, segment height, bond formula): MOQ typically 100–200 units, depending on process complexity. Stock items ship in 3–5 days; custom orders in 15–25 days.
Q6: Do you support OEM/ODM and private labeling? Yes, fully. SANG offers laser marking, screen printing, custom color boxes, and neutral packaging. Distributors and brand owners supply artwork — we handle production and quality assurance.
6. Why Partner with SANG Diamond Tools?
SANG Diamond Tools — A Legacy of Leadership Since 1993 When you choose the SANG ZENESIS 350mm saw blade, you gain more than a high-performance cutting disc — you gain the full backing of a 30+ year manufacturing partner:
Top 10 Industry Leader: Established in 1993, SANG is recognized as a Top 10 Manufacturer in China's diamond tool industry. With an annual tax contribution reaching millions, we are a fiscally strong and reliable partner you can trust for long-term supply.
Scientific Innovation (PhD R&D Team): Innovation is in our DNA. Our R&D center is led by multiple PhDs from prestigious universities, focusing on molecular-level bond design. We don't just sell tools; we provide Exclusive Construction Solutions tailored to your specific job site challenges.
Large-Scale Production & Capacity: With a workforce of 50+ dedicated workshop employees, SANG operates high-capacity automated production lines. We guarantee short lead times and the ability to fulfill container-load orders without compromising quality.
Globally Validated Quality: We hold numerous national industry patents and a comprehensive range of international certificates (ISO 9001:2008, SGS). Our quality is validated by the most stringent markets in North America and Europe.
Professional Multilingual Communication: Our sales team consists entirely of English Major (TEM-8) graduates. We also offer support in multiple languages (French, Persian, Spanish, etc.), ensuring zero-barrier communication and precise requirement handling.
On-Site & Remote Technical Support: We stand behind our products. Our technical engineers offer both online video consultations and offline on-site support to assist with machine calibration, tooling selection, and troubleshooting at your project site.
SANG doesn't just manufacture diamond tools — we deliver jobsite confidence.
7. Key Takeaways
Hard reinforced concrete cutting requires three integrated technologies: laser welding prevents segment loss, ARIX prevents speed decay, and array-pattern prevents burn-out — all three are non-negotiable.
350mm is the engineering sweet spot: 125mm depth of cut fits 95% of equipment. More flexible than 400mm+ large blades. More economical than sub-300mm small blades.
Compare cost per linear meter, not price per blade: ARIX blades cost 20–30% more upfront but deliver nearly double the lifespan — lower total cost.
Real project cases confirm performance: From US highways to Israeli high-rises, ZENESIS delivers consistently on C50+ hard concrete with dense rebar.
Choose your supplier as a long-term partner: Certifications, R&D, capacity, service — all four must be verified. SANG has earned trust since 1993.
Need a quote or free sample of SANG ZENESIS 350mm Laser Welded ARIX Saw Blade?
Contact SANG sales team: info@sangtools.com | WhatsApp: +8613808521603
Tell us your concrete grade, rebar density, cutting depth, and dry/wet requirements. Our engineers will recommend specifications and pricing within 24 hours.
